POME  TREATMENT IN COVERED LAGOON DIGESTER

PALM OEL MILL EFFLUENT TREATMENT

During the production of crude palm oil, large amount of waste water and by-products are generated. POME or Palm Oil Mill Effluent is an underutilized liquid waste stream from palm oil mills which is generated during the palm oil extraction/decanting process and often seen as a serious environmental issue but it is a very good source for biomethane production.




Pome - efluentes extracción aceite de palma africana

POME is a colloidal suspension containing 95-96% water, 0.6-0.7% oil and 4-5% total solids, which include 2-4% suspended solids. Biological Oxygen Demand (BOD) generally ranges between 25,000 and 65,000 mg/L, Chemical Oxygen Demand (COD) ranges between 40,000 and 120,000 mg/L.


Most palm oil mills and refineries have their own treatment systems for POME, which is easily amenable to biodegradation due to its high organic content. The treatment system usually consists of anaerobic and aerobic ponds without capturing biogas released from the process.



POME is commonly treated using open ponding system just to comply with government regulation without capturing biogas released from the process. A conventional open lagoon system consists of four types of ponds: a fat pit, cooling pond, anaerobic pond, and aerobic pond. The fat pit recovers any remaining FOG in the POME and is generally recovered by the mill operator. The cooling pond decreases the temperature of POME, creating optimal conditions for the decomposition of organic material in the anaerobic and aerobic ponds. After treatment in these four ponds, the effluent is safe to discharge to waterways or apply on land as a fertiliser. Open lagoon system releases large volumes of methane to the atmosphere primarily from the organic decomposition that occurs in the anaerobic pond.



The following photos show some lagoons full of sludge and silt those have to be removed regularly to avoid filling in the bottom of the lagoons.

The majority of digesters that Aqualimpia has evaluated, are simple lagoons  covered with non-elongated HDPE membranes, which  easily crack due to the sun's rays,  get brittle and let the biogas escape.These membranes will be inflated, and because they are not elastic, they stretch and do not return to their original size. In most of the cases evaluated, those digesters do not have mechanical agitation systems and the sludge is not extracted. 30% of these digesters evaluated are out of service or are inefficient, do not degrade the organic load or do not produce biogas.

covered lagoon digester

Aqualimpia Engineering has developed a tropical lagoon system  for the treatment  of wastewater (POME) produced during the extraction of african palm oil. This system is designed and constructed with german engineering knowledge and are highly efficient.



The technology we offer has been built from over 30 years of experience in the design and construction of biogas plants.  Our expertise has helped us to create a tropicalized covered lagoon system  that is very  efficient, economical and  can be constructed by  local companies. Only the technical equipment must be imported from Germany.

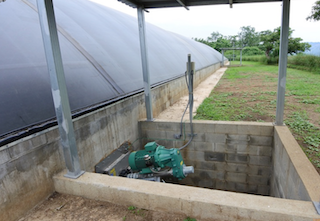

We install in all our digester a pumping system to extract the sludge which  sediment at the bottom of the lagoon.



On this way, we do prevent that after a few years of operation the digester will be filled with sludge.


Our digester  are CSTR systems  with mechanical  agitation (with German mixers) to improve biogas production and eliminate the formation of scum and foam. Through the agitation will be also improved  the biogas production and a better degradation of COD.

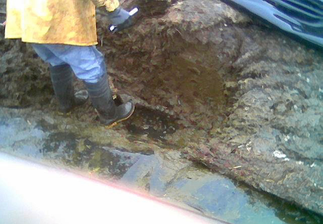

Foam - scum - digester plants

Blankets of scum may form during a startup or after a few years of operation. During startup a thin zone of high volatile acid content may become localized at the digester surface. Under a mature system a thick, black layer of grease, vegetable matter, and concentrated  sludge may cover the entire surface.



Under a mature system the breakdown of scum at the surface of the digester may cause foaming. When scum degrades, a pocket of high volatile acid content develops. The acids produce a condition that is similar to startup. Stratification of non-digested solids near the surface causes foaming.

If foam and scum production in an anaerobic digester is a severe and frequent problem that we have solve in our covered lagoon digester through the instalation of  agitators.


PALM OEL COMPANIES CLIENTS OF AQUALIMPIA ENGINEERING

in HONDURAS, COLOMBIA EN PERU




ATEX BLOWERS INSTALLED IN DIGESTER FOR POME TREATMENT

SLUDGE MANAGEMENT AND TREATMENT IN DIGESTER

In  the majority of the digesters that Aqualimpia has evaluated, sludge is chemically treated using flocculants and is never extracted based on the degree of mineralization of the sludges or their age. Fresh, undigested sludge is extracted, which still contains a lot of organic load and fats that make it difficult to separate and dry.

Digestate and sludge from biodigesters that treat POME  can cause high operating costs if they are not extracted following technical recommendations. If the sudge is extracted without knowing his mineralization grade, it will contain high contents of organic compounds,  they are sticky and greasy. Therefore, they cannot be separated from the liquid component and they are not properly dehydrated in sludge drying beds


Aqualimpia has developed a sludge extraction process that takes into account the degree of mineralization of the sludge and the content  of dry mass and volatile solids of the sludge. These are removed and conducted through a solids separator. The separated sludge is dried in a cell of the sludge drying beds and the liquid component is recirculated to the biodigester or is also dried in special cells of the sludge drying beds.


SLUDGE DRYING BEDS  for digesters

FERTILIZER PRODUCTION IN DIGESTER PLANTS
